Standard Features
| 15,680 LB G.V.W.R. |
| 2-7,000 LB BESSER AXLES 2 ELEC. BRAKES |
| SLIPPER SPRING SUSPENSION |
| 16" SILVER MOD 8 HOLE WHEELS |
| ST235/80/R16 10 PLY RADIAL TIRES |
| 6" 8.2 LB CHANNEL FRAME |
| 12" 14 LB I-BEAM NECK |
| 2-5/16" ADJUSTABLE ROUND GOOSENECK COUPLER 25K |
| 3" CHANNEL CROSSMEMBERS ON 16" CENTERS |
| 2-10K DROP LEG SPRING LOADED JACKS |
| DOUBLE BROKE DIAMOND PLATE FENDERS |
| TREATED WOOD FLOOR |
| 5' SLIDE IN RAMPS OUT THE BACK (ONLY ON 18'+) |
| FRONT TOOLBOX BETWEEN RISERS |
| STAKE POCKETS & RUB RAIL |
| ST235/80/R16 10 PLY RADIAL SPARE TIRE |
| 7 WAY RV PLUG-IN |
| FLUSH MOUNT LED LIGHTS |
| SAND BLASTED & POWDER COATED |
| BLACK COLOR |

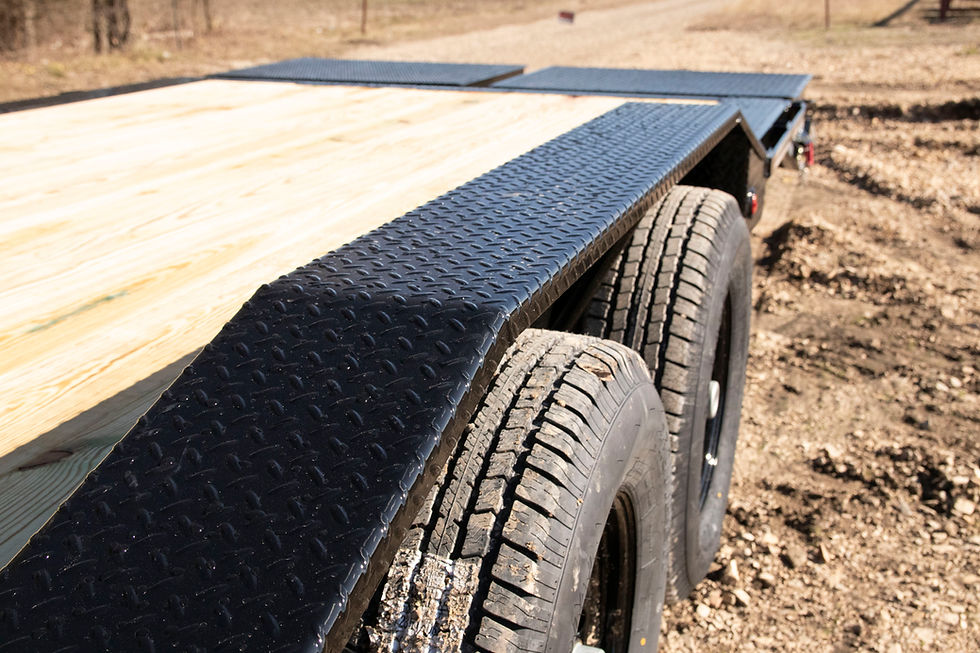

Gooseneck Low Boy Equipment Hauler 14K
83" X 16' GN LOW BOY EQUIPMENT 14K 83" X 18' GN LOW BOY EQUIPMENT 14K 83" X 20' GN LOW BOY EQUIPMENT 14K 83" X 22' GN LOW BOY EQUIPMENT 14K 83" X 24' GN LOW BOY EQUIPMENT 14K 83" X 26' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 83" X 28' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 83" X 30' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 83" X 32' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 83" X 34' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 83" X 36' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 83" X 38' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 83" X 40' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 102" X 16' GN LOW BOY EQUIPMENT 14K 102" X 18' GN LOW BOY EQUIPMENT 14K 102" X 20' GN LOW BOY EQUIPMENT 14K 102" X 22' GN LOW BOY EQUIPMENT 14K 102" X 24' GN LOW BOY EQUIPMENT 14K 102" X 26' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 102" X 28' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 102" X 30' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 102" X 32' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 102" X 34' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 102" X 36' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 102" X 38' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 102" X 40' GN LOW BOY EQUIPMENT 14K W/8" CHANNEL FRAME 2-7,000 LB LIPPERT TORSION AXLES 2 ELEC. BRAKES 2-7,000 LB BESSER DROP AXLES 2 ELEC. BRAKES (FRAME CHANGES TO 80" WIDE) 2-7,000 LB LIPPERT AXLES 2 HYD. DISC BRAKES (FRAME CHANGES TO 80" WIDE) 2-7,000 LB LIPPERT AXLES 2 HYD. DRUM BRAKES 3-7,000 LB BESSER AXLES 3 ELEC. BRAKES 2-8,000 LB LIPPERT SPRING AXLES 2 ELEC. BRAKES (INCLUDES 14 PLY TIRES) 83" WIDE FRAME 2-8,000 LB LIPPERT AXLES 2 ELEC. OVER HYD DISK BRAKE (INCLUDES 14 PLY TIRES) FRAME CHANGES TO 80" WIDE 2-8,000 LB LIPPERT TORSION AXLES 2 ELEC. BRAKES (INCLUDES 14 PLY TIRES) FRAME CHANGES TO 80" WIDE 3-8,000 LB LIPPERT AXLES 3 ELEC. BRAKES 2" PADS (INCLUDES 14 PLY TIRES) ST235/80/R16 10 PLY RADIAL TIRES W/BLACK WHEELS ST235/85/R16 14 PLY RADIAL TIRES ST235/85/R16 14 PLY RADIAL TIRES W/BLACK WHEELS ST215/75/R17.5 16 PLY RADIAL TIRES W-5/8" STUDS ON AXLES UPGRADE TO ALUMINUM WHEELS (COMMENT IN NOTES ON TYPE OF WHEEL) 2-5/16" GOOSENECK SQUARE 30K COUPLER KING PIN COUPLER RAISE NECK 6" RAISE NECK 12" 2-10K 2 SPEED RAM DROP LEG JACKS 2-25K 2 SPEED JOST JACKS 2-10K HYD. JACKS W/HYD. PUMP/BATTERY/TOOLBOX 2' WOOD DOVE 3' WOOD DOVE 4' WOOD DOVE 2' DIAMOND PLATE STEEL DOVE 3' DIAMOND PLATE STEEL DOVE 4' DIAMOND PLATE STEEL DOVE 5' FOLD UP RAMPS W/SUPPORT LEGS & SPRING ASSIST 5' - 24" WIDE EQUIPMENT FOLD UP RAMPS W/#6 EXP. METAL 6' SLIDE IN RAMPS (24' AND UP ONLY) 7' SLIDE IN RAMPS (28' AND UP ONLY) 8' SLIDE IN RAMPS (30' AND UP ONLY) 6' HYD. DOVE TAIL (ONLY 26' AND UP) 8' HYD. DOVE TAIL (ONLY ON 32' AND UP) 42" DOVE TAIL W/MACHO RAMPS (CANNOT DO RECEIVER HITCH) DIAMOND PLATE TEARDROP FENDERS REMOVABLE DIAMOND PLATE FENDERS DRIVE OVER FENDERS (STANDARD ON 102" WIDE) DRIVE OVER FENDERS ON TRIPLE AXLES (STANDARD ON 102" WIDE) 8" CHANNEL FRAME UPGRADE 9" CHANNEL FRAME UPGRADE OAK WOOD FLOOR BLACKWOOD CLASSIC FLOOR BLACKWOOD PRO FLOOR DIAMOND PLATE 11 GA. STEEL FLOOR W/4 FLUSH MOUNT D-RINGS DIAMOND PLATE 3/16" STEEL FLOOR W/4 FLUSH MOUNT D-RINGS OPEN CENTER W/TIE DOWN HOLES IN DIAMOND PLATE 11 GA. STEEL FLOOR ON OUTSIDE & CROSSMEMBERS ON 16" CENTERS 3" CHANNEL CROSSMEMBERS 12" ON CENTERS TORQUE TUBE 2-3/8" PIPE TOP WELD ON RAIL 2-3/8" PIPE TOP REMOVABLE RAIL 3" X 3" SQUARE TUBING WELD ON SIDE RAIL 3" X 3" SQUARE TUBING REMOVABLE SIDE RAIL WELD-ON 1/2" D-RINGS WELD-ON 5/8" D-RINGS FLUSH MOUNT D-RINGS 360 SWIVEL D-RINGS 2-2K PIPE MOUNT REAR SUPPORT FLIP JACKS TOOLBOX BETWEEN RISERS ON TOP FACING REAR TOOLBOX IN THE FLOOR 10" DEEP 20" LONG 24" WIDE DIAMOND PLATE RUNNING BOARDS RECEIVER HITCH 7 WAY PLUG FOR RECEIVER HITCH EXTRA STAKE POCKETS SIDE MARKER LIGHTS 5 LIGHTS IN THE FLOOR WITH SWITCH BACK UP LED LIGHTS WINCH PLATE DECK MOUNT WINCH PLATE BETWEEN RISERS 8K WARN WINCH W/TRICKLE CHARGER/BATTERY & BOX 10K WARN WINCH W/TRICKLE CHARGER/BATTERY & BOX 12K WARN WINCH W/TRICKLE CHARGER/BATTERY & BOX 17.5K SMITTYBILT WINCH W/WIRELESS REMOTE/TRICKLE CHARGER/BATTERY & BOX - HEB Black (High Edge Black)
- Smoke Charcoal Bond Met.
- Midnight Blue Metallic
- Tractor Green
- Bittersweet Orange
- Power Truck White
- Equipment Yellow
- Coyote Tan
- Silver Bond Metallic
- RAL 3004 Maroon
- RAL 5010 Gentian Blue(National)
- RAL 4003 Pink
- Cement Grey
- Ultra Matte Black II
- Machine Industrial Grey
- American Red
- Western Tan Bond Met.
- Candy Apple Red
- Safety Neon Green
- Kawasaki Green (KK C Green)
